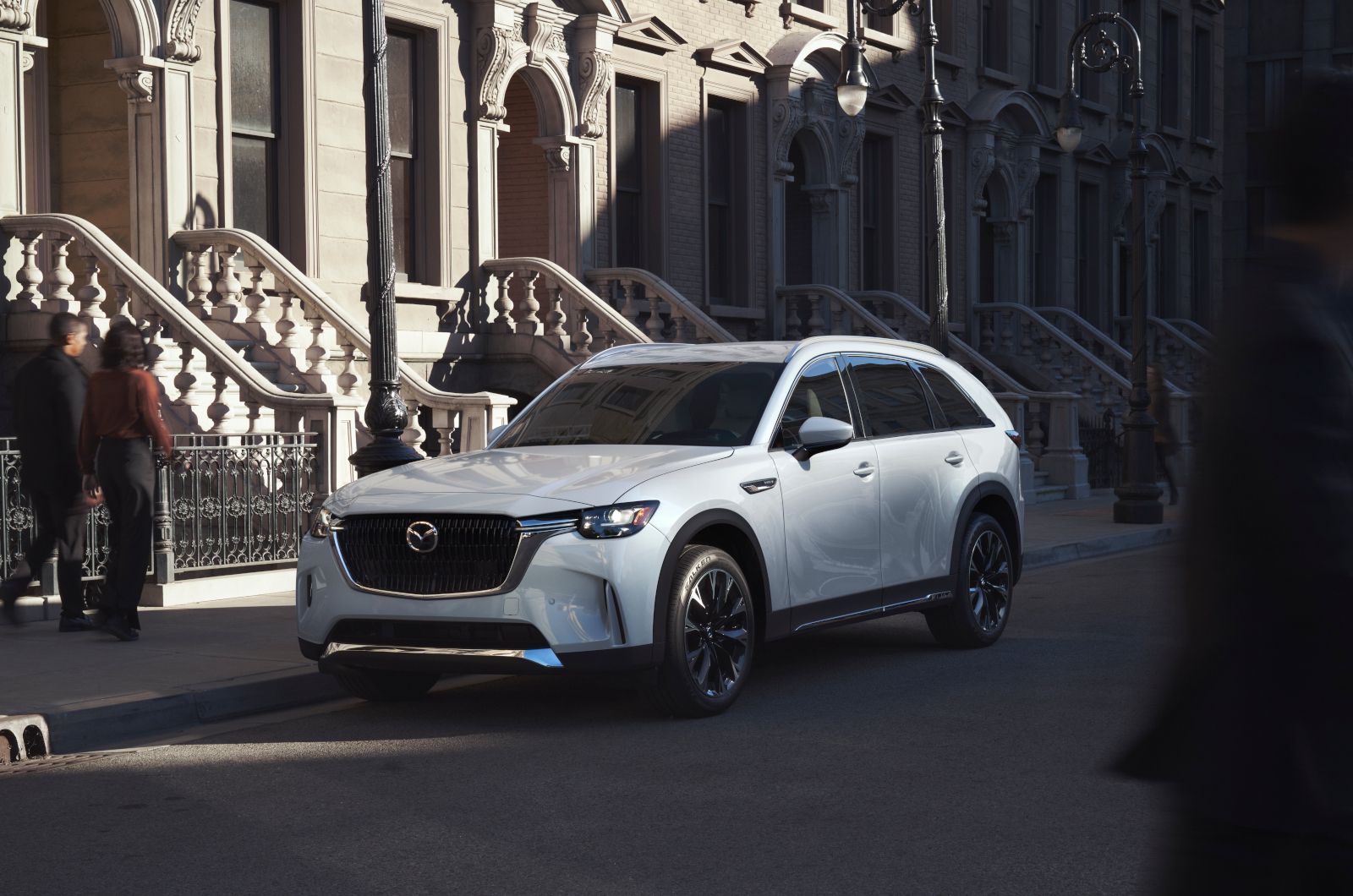

2026 Mazda CX-90 MHEV vs PHEV: Which Hybrid Is Right for You?

The 2026 Mazda CX-90 offers two hybrid powertrain options: the Mild Hybrid Electric Vehicle (MHEV) and Plug-In Hybrid Electric Vehicle (PHEV). While both offer standard all-wheel drive, premium comfort and three-row versatility, they deliver different driving experiences.

The CX-90 MHEV is ideal for drivers who want smooth inline-six performance without plugging in, while the CX-90 PHEV is better suited to drivers who want electric-only driving capability and have convenient access to charging.

For drivers in Woodstock, London and Oxford County, choosing between the two often comes down to daily commuting distance, fuel economy, access to home charging and towing requirements.

In this guide, Woodstock Mazda compares the 2026 Mazda CX-90 MHEV vs PHEV, including performance, fuel efficiency, electric range, towing capacity and available features, to help you decide which powertrain best fits your lifestyle.

2026 Mazda CX-90 MHEV vs PHEV at a Glance

What Is the Mazda CX-90 MHEV?

The CX-90 Mild Hybrid uses Mazda's 3.3-litre turbocharged e-Skyactiv G Inline-6 together with a 48-volt M Hybrid Boost system.

Unlike a plug-in hybrid, the MHEV does not need to be connected to an external charger.

Its electrical system assists the gasoline engine and recovers energy while driving, helping support efficiency and smooth power delivery.

For the driver, the experience is similar to operating a conventional gasoline vehicle: simply fill the CX-90 with fuel and drive.

What Is the Mazda CX-90 PHEV?

The CX-90 Plug-In Hybrid takes a different approach.

It combines a 2.5-litre e-Skyactiv gasoline engine with an electric motor and rechargeable high-voltage battery.

When the battery is charged, the PHEV can travel up to an estimated 43 kilometres using battery power alone under ideal conditions.

Once additional power or range is required, the gasoline engine allows the CX-90 to continue operating without the range limitations of a battery-electric vehicle.

MHEV vs PHEV: What's the Difference?

The biggest difference is the role electricity plays in moving the vehicle.

In the CX-90 MHEV, the mild-hybrid system primarily supports the gasoline engine. It isn't designed to provide the kind of sustained electric-only driving offered by a plug-in hybrid.

In the CX-90 PHEV, a larger rechargeable battery and electric motor allow the vehicle to complete many shorter trips using electric power when the battery is sufficiently charged.

2026 CX-90 MHEV Horsepower and Torque

Mazda offers two output levels of its 3.3L turbocharged Inline-6.

CX-90 GS, GS-L and GT models use the standard-output engine producing 280 horsepower and 332 lb-ft of torque.

CX-90 GT-P and Signature models use the high-output version producing up to 340 horsepower and 369 lb-ft of torque with 93-octane premium gasoline.

The high-output engine can also operate on regular gasoline, with Mazda rating it at 319 horsepower while maintaining 369 lb-ft of peak torque.

2026 CX-90 PHEV Horsepower and Torque

The 2026 Mazda CX-90 PHEV produces up to 323 horsepower and 369 lb-ft of torque when using 93-octane gasoline.

With 87-octane regular gasoline, Mazda rates total system output at 319 horsepower.

This puts the PHEV between the standard and high-output Inline-6 versions in terms of maximum horsepower while matching the high-output MHEV's peak torque figure.

Which CX-90 Is More Powerful?

If maximum horsepower is the priority, the CX-90 MHEV GT-P and Signature have the advantage.

Their high-output Inline-6 produces up to 340 horsepower, compared with up to 323 horsepower from the PHEV.

The PHEV, however, benefits from immediate electric-motor assistance, giving it a different character during everyday acceleration.

2026 Mazda CX-90 PHEV Electric Range

Mazda estimates the 2026 CX-90 PHEV can travel up to 43 km on battery power alone under ideal conditions with a full charge.

Mazda also estimates a total gasoline-and-electric driving range of up to 801 km under ideal conditions with a full battery and fuel tank.

Actual range varies with temperature, speed, climate-control use, driving habits, battery condition and other factors.

Is 43 km of Electric Range Enough?

Whether 43 km is enough depends heavily on how you drive.

For someone with a relatively short commute who can charge regularly, much of their routine local driving could potentially be completed using electric power.

Drivers with longer daily commutes will use the gasoline engine more frequently, but they still retain the flexibility of a gasoline vehicle for longer trips.

CX-90 MHEV vs PHEV Fuel Economy

Comparing fuel economy between a mild hybrid and plug-in hybrid requires some context because the PHEV's result depends heavily on how frequently it is charged.

Mazda rates the 2026 CX-90 PHEV at 9.2 L/100 km combined when operating on gasoline and approximately 4.2 Le/100 km combined when electricity and gasoline use are considered using the Government of Canada's energy-equivalent measurement.

Mazda lists the CX-90 MHEV at as low as 8.5 L/100 km on the highway.

The PHEV's biggest efficiency advantage comes when owners charge it regularly and make meaningful use of its electric driving capability.

Do You Have to Charge the CX-90 PHEV?

The CX-90 PHEV can continue operating using gasoline if its available battery charge has been depleted.

However, regularly charging the battery is important if you want to receive the primary efficiency benefit of choosing the PHEV.

If you don't have convenient access to charging and don't expect to plug the vehicle in regularly, the MHEV may be the more straightforward choice.

Does the CX-90 MHEV Need to Be Charged?

No. The CX-90 Mild Hybrid does not require external charging.

Mazda's M Hybrid Boost system manages its small battery automatically while the vehicle is being driven.

That makes it a good option for drivers interested in electrified assistance without changing their normal refuelling routine.

CX-90 MHEV vs PHEV Towing Capacity

Towing is one of the most significant differences between the two CX-90 powertrains.

The CX-90 PHEV is rated to tow up to 3,500 lb when properly equipped.

The CX-90 MHEV also starts with a 3,500-lb towing rating, but select Inline-6 trims can tow up to 5,000 lb when properly equipped.

Drivers who regularly tow heavier trailers may therefore find the properly equipped MHEV better suited to their needs.

Does the CX-90 MHEV and PHEV Have AWD?

Yes. Both versions come with Mazda i-ACTIV AWD in Canada.

This means choosing the PHEV does not require giving up all-wheel-drive capability.

Standard AWD is particularly useful for drivers in Woodstock and Southwestern Ontario who regularly encounter rain, snow and changing winter road conditions.

Mi-Drive Modes

Both versions of the CX-90 offer Mazda Intelligent Drive Select, commonly called Mi-Drive.

Available modes vary by powertrain and trim.

The PHEV provides EV mode in addition to modes such as Normal, Sport and Off-road. Towing mode is also available on applicable PHEV trims.

MHEV models provide modes designed around the characteristics of the Inline-6 powertrain, with additional functionality depending on trim.

CX-90 MHEV vs PHEV for Highway Driving

Drivers who spend a significant amount of time travelling longer distances on highways may prefer the CX-90 MHEV.

Its turbocharged Inline-6 provides strong passing power, and the mild-hybrid system requires no charging routine.

Because plug-in hybrids typically deliver their greatest efficiency advantage when a meaningful portion of driving can be completed on electricity, the PHEV's benefits can be less pronounced on repeated long-distance highway trips.

CX-90 MHEV vs PHEV for City Driving

The PHEV becomes particularly compelling for drivers who complete shorter daily trips and can charge regularly.

With up to 43 km of estimated electric driving range, some drivers may be able to complete much of their daily commuting, errands or school runs using battery power.

The gasoline engine remains available when additional range or performance is required.

CX-90 MHEV vs PHEV for Ontario Winters

Both CX-90 powertrains offer standard i-ACTIV AWD, making either one a viable option for year-round Ontario driving.

Cold temperatures can reduce electric driving range, and Mazda notes that the PHEV's gasoline engine may operate even with battery charge available when heat is required for the cabin.

Drivers considering the PHEV should therefore expect electric range to vary throughout the year.

Proper winter tires remain important regardless of which CX-90 powertrain you choose.

CX-90 MHEV vs PHEV: Which Is Better for You?

Neither powertrain is automatically the better choice. They are optimized for different driving patterns.

2026 Mazda CX-90 MHEV vs PHEV FAQs

What is the difference between CX-90 MHEV and PHEV?

The MHEV uses a 3.3L turbocharged Inline-6 with a 48-volt mild-hybrid system and does not need external charging. The PHEV combines a 2.5L gasoline engine with a larger rechargeable battery and electric motor, allowing up to 43 km of estimated electric driving.

Which CX-90 has more horsepower?

The high-output CX-90 MHEV produces up to 340 horsepower. The CX-90 PHEV produces up to 323 horsepower. Standard-output MHEV models produce 280 horsepower.

How far can the 2026 CX-90 PHEV drive on electricity?

Mazda estimates up to 43 km of electric driving range under ideal conditions with a fully charged battery.

What is the total range of the CX-90 PHEV?

Mazda estimates up to 801 km of total driving range under ideal conditions with a full battery and full fuel tank.

Do you need to plug in the CX-90 MHEV?

No. The MHEV's 48-volt mild-hybrid system manages its battery automatically and does not require external charging.

Can the CX-90 PHEV drive without charging?

Yes. The gasoline engine allows the vehicle to continue operating when electric range is unavailable. However, regularly charging the vehicle is important for maximizing the benefits of the plug-in hybrid system.

Which CX-90 can tow more?

Select CX-90 MHEV configurations can tow up to 5,000 lb when properly equipped. The CX-90 PHEV is rated for up to 3,500 lb.

Does the CX-90 PHEV have AWD?

Yes. i-ACTIV AWD is standard on Canadian CX-90 PHEV models.

Is the CX-90 PHEV better for city driving?

It can be particularly well suited to shorter daily trips when the vehicle is regularly charged, because those trips may make greater use of its electric driving capability.

Is the CX-90 MHEV better for highway driving?

The MHEV can be an attractive choice for frequent highway travel because of its turbocharged Inline-6 performance and the fact that it does not require a charging routine.

Compare the Mazda CX-90 in Woodstock, Ontario

Choosing between the 2026 Mazda CX-90 Mild Hybrid and Plug-In Hybrid ultimately depends on how you drive.

Drivers with access to charging and shorter daily trips may benefit most from the PHEV, while drivers who prioritize Inline-6 performance, heavier towing or long-distance convenience may prefer the MHEV.

Woodstock Mazda can help you compare both CX-90 powertrains and determine which configuration best fits your driving habits.

Vehicle specifications, fuel economy, electric range, horsepower, towing capacity and equipment are subject to change and may vary by trim. Electric range varies based on temperature, driving conditions, charging habits, vehicle condition and other factors. Towing requires appropriate equipment and should not exceed the rating of the specific vehicle. Consult Mazda Canada or Woodstock Mazda for current Canadian specifications.
